Used OEM MTU Series 2000 Engine Parts

Used OEM MTU Series 2000 Engine Parts

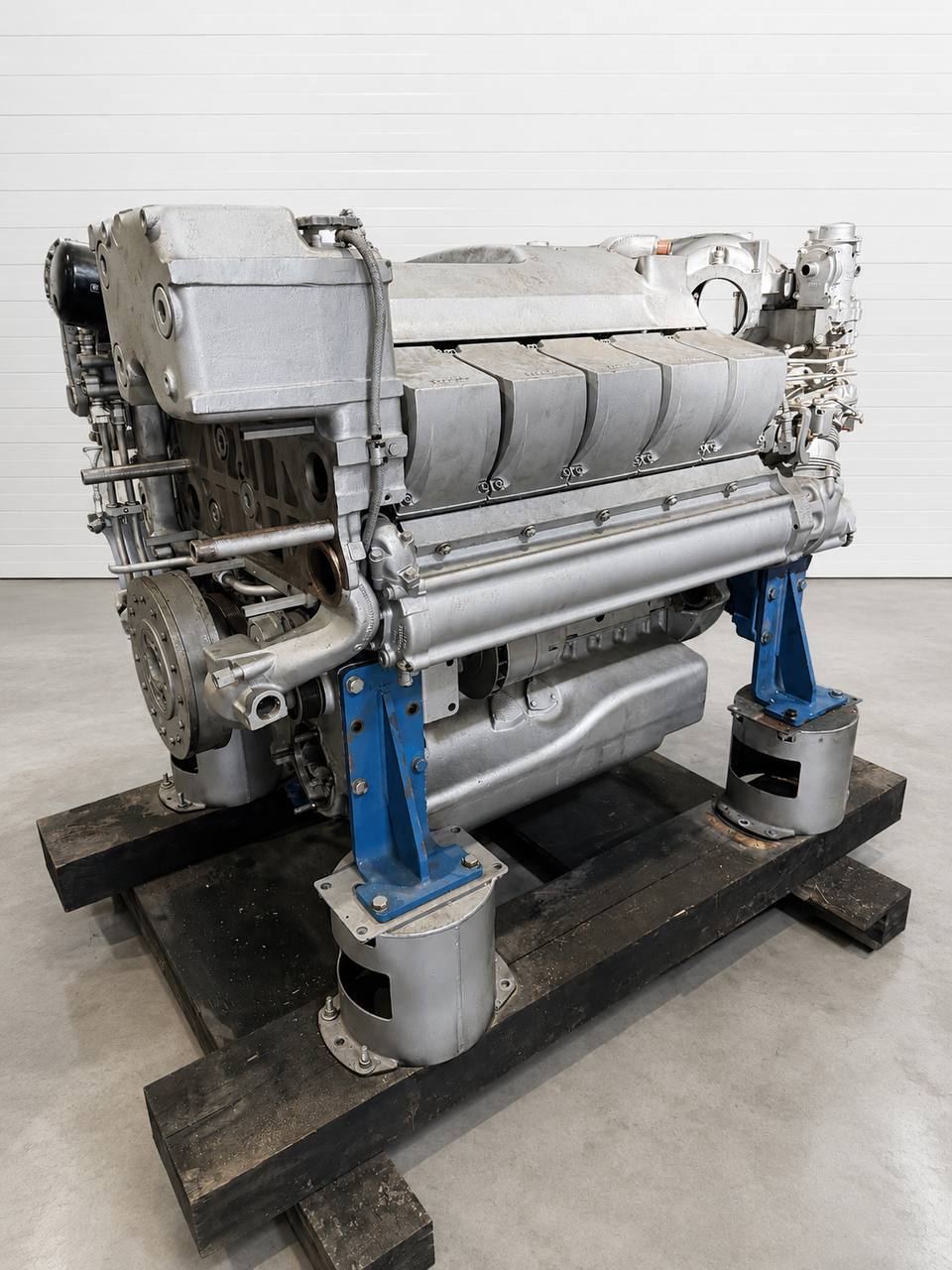

We offer a wide selection of genuine used OEM MTU engine components removed from MTU 10V2000M92 / Series 2000 engines.

This listing covers multiple individual OEM parts. Components are sold separately and availability may vary.

We do not list normal service consumables such as gaskets, O-rings, sealing rings, filters, adhesives, sealants, bolts, nuts, washers or standard mounting hardware.

Depending on the component and customer requirements, we can also offer inspection, cleaning, testing and professional reconditioning before delivery.

Engine Block & Internal Components

5320100205 — Crankcase
Main engine crankcase housing for the MTU 10V2000M92.

5320100213 — Oil Pan
Main engine oil pan / sump.

5320100037 — Flywheel Housing
Flywheel-side engine housing.

X00043780 — Gear Case
Gearcase located at the auxiliary PTO end.

5322000044 — Idler Gear
Intermediate gear used within the engine gear train.

X00004591 — Vibration Damper
Engine torsional vibration damper.

5320300105 — Flywheel
Flywheel assembly used on the engine drive end.

X00012317 — Crankshaft Assembly
Complete crankshaft assembly with counterweight configuration.

5320300617 — Piston Assembly
OEM piston assembly for the MTU Series 2000 engine.

X00034195/87 — Connecting Rod Assembly
Connecting rod assembly for the engine rotating group.

---

Cylinder Head & Valve Train

5360101420 — Cylinder Head Complete
Complete cylinder head supplied with valves according to the MTU catalog.

X00002773 — Bare Cylinder Head
Bare cylinder-head casting without valve guides and seat rings.

5410501336 — Rocker Shaft Support with Rocker Arm
Complete rocker support assembly for the valve train.

5410500834 — Rocker Arm, Exhaust

5410500933 — Rocker Arm, Inlet

5320540105 — Pushrod

5410500722 — Roller Tappet

X00018744 — Camshaft Assembly
Camshaft assembly including camshaft gear and metering wheel.

5320510001 — Camshaft

X00017799 — Camshaft Gear

5320100130 — Cylinder Head Cover Lower Part

5320160205 — Cylinder Head Cover

---

Fuel Injection & Fuel System

X00040999 — HP Pump
High-pressure fuel pump used in the MTU fuel-injection system.

XP51107300001 — Suction Restriction Valve

X00040691 — Injector
OEM fuel injector; ten units are used on the 10V engine.

5320700068 — HP Accumulator

X00008633 — Fuel Distributor

5320700146 — Pressure Relief Valve

X00011994 — Valve Housing

5360900250 — Fuel Delivery Pump

X00043806 — Fuel Prefilter Assembly
Reusable fuel-prefilter housing assembly; service filter elements are not included in this product listing.

Z=66 505 31 993 — Filter Head
Duplex fuel-filter head.

0000701879 — Fuel Cooler
Fuel cooler located in the return-fuel system.

---

Fuel & High-Pressure Lines

X00009682 — Fuel Line from HP Pump

5320700032 — HP Line Left Side

5320700132 — HP Line Right Side

X00008115 — Fuel Line to Injector

531SK5118 — Fuel Line

531SK5119 — Fuel Line

5320701032 — Fuel Line

X00010037 — Fuel Line

5320701132 — Fuel Line

5320701232 — Fuel Line

5320701332 — Fuel Line

5320701432 — Fuel Line

Fuel Return / Leak-Off Lines

5320702632 — Fuel Line, Left

5320701732 — Fuel Line

5320702732 — Fuel Line

5320701932 — Fuel Line

5320702032 — Fuel Line

5320702132 — Fuel Line

5320702232 — Fuel Line

5320702332 — Fuel Line

5320702432 — Fuel Line

5320702832 — Fuel Line

---

Charge-Air & Intake Components

X00004329 — Intercooler
Central charge-air cooler assembly.

X00011995 — Flap Housing Assembly

5320900060 — Flap Housing

5360980218 — Actuating Cylinder

X00043157 — Intake Housing

X51211400002 — Fairing

5320900137 — Charge-Air Line

---

Exhaust System

5321401218 — Exhaust Housing Left

5321401318 — Exhaust Housing Right

X00020020 — Exhaust Elbow

5321420509 — Exhaust Manifold Left

5321420409 — Exhaust Manifold Right

5321400918 — Carrier Housing Bottom Assembly

5321421067 — Carrier Housing Bottom

5321420501 — Exhaust Elbow Left

5321420601 — Exhaust Elbow Right

X00028157 — Exhaust Pipe Bellows

5321421467 — Flap Housing

5321420031 — Exhaust Flap

5321401018 — Carrier Housing Assembly

5321421167 — Carrier Housing Top

5321420391 — Carrier Housing Cover

0001401182 — Bellows

---

Lubrication System

5500100061 — Oil Separator

5320180231 — Housing for Oil Separator

0001812398 — Semirotary Hand Pump

X00011993 — Changeover Housing
Oil-filter changeover housing used with the engine lubrication system.

5321800111 — Changeover Housing Body

5321800067 — Slide Valve for Oil Filter

0021887101 — Oil Heat Exchanger

5321800001 — Oil Pump

5361800515 — Pressure Relief Valve for Oil Pump

Oil Lines

5321800820 — Oil Line

5321800920 — Oil Line

5321801320 — Oil Line

5321801420 — Oil Line

5321801520 — Oil Line

5321801620 — Oil Line

5321801720 — Oil Line

5321801820 — Oil Line

X00012005 — Suction Line

5321800120 — Plug-In Pipe

X51118900006 — Plug-In Pipe for Oil Line

---

Cooling & Seawater System

5322000416 — Coolant Distribution Housing Assembly

5322030473 — Coolant Distribution Housing

X00022053 — Thermostat Housing Assembly

5322000001 — Coolant Pump

5322040000 — Seawater Pump

X00035130 — Seawater Elbow

X00003420 — Elbow to Plate-Core Cooler

X51120300002 — Elbow for Engine Coolant Pump

Coolant Lines

5322000151 — Coolant Line

5322000051 — Coolant Line

5322000251 — Coolant Line

5322000351 — Coolant Line

5322000451 — Coolant Line

5322000551 — Coolant Line

Vent Lines

5322000258 — Vent Line

5322000658 — Vent Line

5322000458 — Vent Line

5322000558 — Vent Line

Seawater Line

X00014522 — Seawater Line for Gearbox Oil Cooling

---

Control Lines

5320900035 — Control Line

5320900235 — Control Line

5320900335 — Control Line

---

Electrical Components

0051516001 — Starter
Engine electric starter.

0101547902 — 3-Phase Alternator, 28V / 140A
OEM three-phase alternator for the MTU 10V2000M92.

X00008803 — Wiring Harness to Injector

X00043256 — Wiring Harness for On-Engine Sensors

0005358233 — Speed Sensor

0005357933 — Speed Sensor

0035352531 — Pressure Sensor

0035352731 — Pressure Sensor

0035351731 — Pressure Sensor

5205304531 — Fuel Sensor

0035352931 — Pressure Sensor

5205304069 — Speed Transmitter

0005356430 — Temperature Sensor

0005358530 — Temperature Sensor

X00031104 — Level Monitor

X00031095 — Level Monitor

---

Condition & Reconditioning

Condition: Used OEM

Parts may show normal cosmetic signs of previous service, storage or removal.

Upon request, selected components can be professionally:

Inspected • Cleaned • Tested • Measured • Reconditioned

Please contact us before ordering if you require a tested or reconditioned component.

Price & Availability

Price on Request / Contact for Current Availability

Because this listing includes multiple individual MTU OEM part numbers, pricing depends on the specific component, condition, configuration and required level of inspection or reconditioning.

Please send us the OEM Part Number you require and we will provide current availability, photographs, condition information and quotation.
